Hybrid Gripper for Palletizing
Gripper
%204-3.png)
- Customer: Cosmetics Manufacturer
- Development Period: Approx. 3 days
- Gripper Weight (incl. suction cup, flange, and processed parts): Approx. 950g
- Manufacturing : 3D Printing (High-Strength Composite Material), CNC
- Application: Incasing / Loading 3 cosmetics boxes into the packaging box.
No items found.

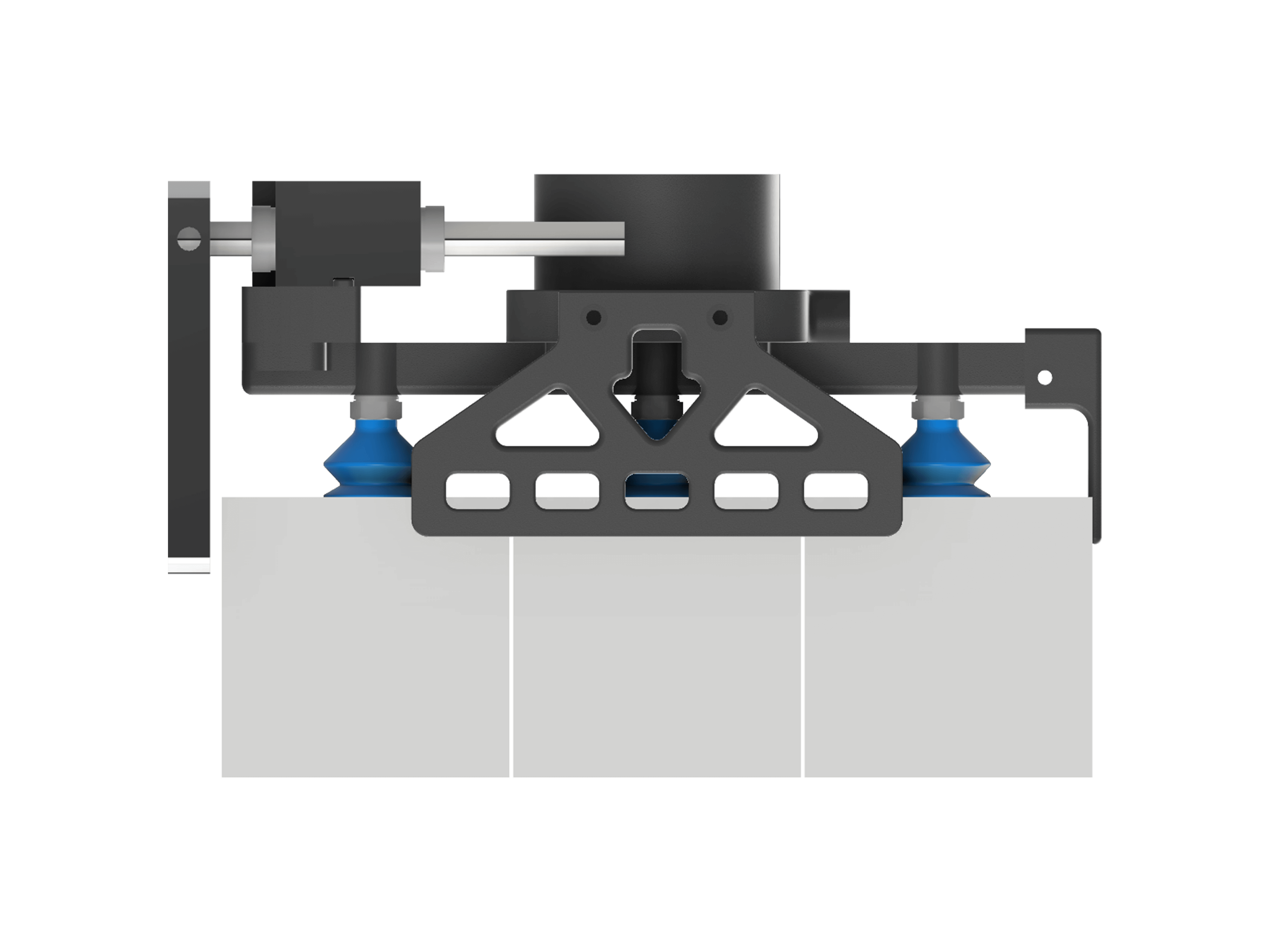

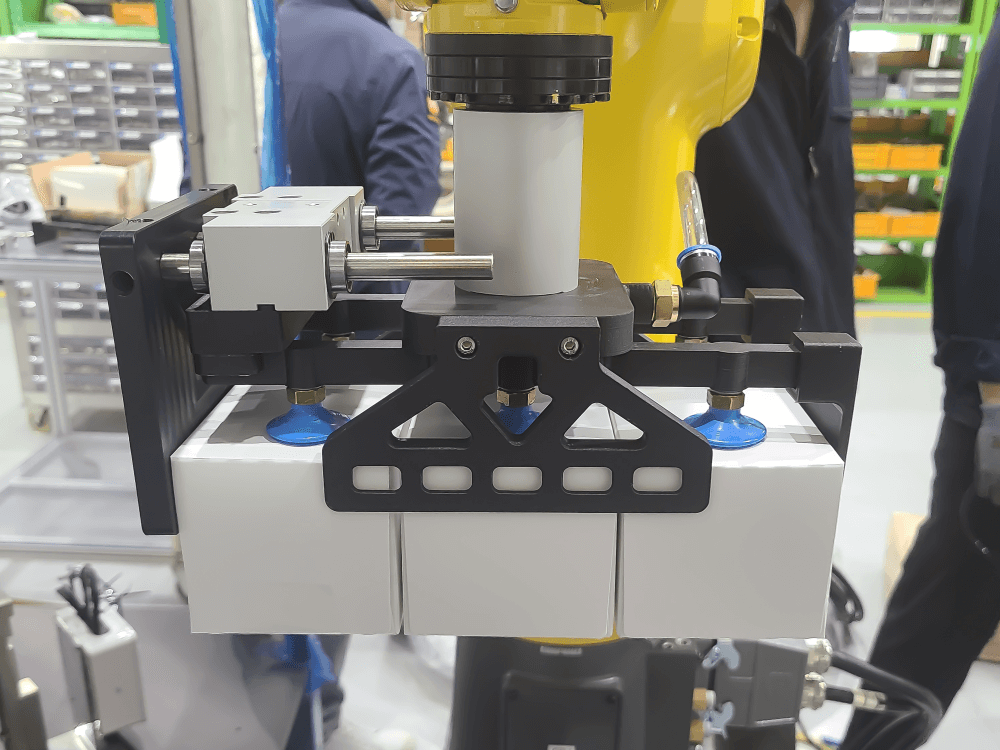

- Utilize pneumatic cylinders for a secure grip, eliminating interference during loading into the packaging box.
- Gripper body is universally designed, featuring replaceable extension bars for versatility with different workpiece sizes.
- Extension bars 3D-printed with reinforcement continuous fibers for enhancing stiffness.
- Design built-in vacuum channels within the gripper for convenient use with connecting one-touch fitting and vacuum tubes.
