Ceramic Container Handling Gripper
Gripper
%204-3.png)
- Customer: Battery Manufacturer
- Development Period: Approx. 3 days
- Gripper Weight (incl.g suction cup and flange): Approx. 660g
- Manufacturing: 3D Printing (High-Strength Composite Material with additional reinforcement fibers)
- Application: Handling 7kg ceramic container
No items found.
- Designed with replaceable extension bars at the bottom of gripper body, allowing for flexible adjustment of extension length. This enables changes in suction position and range, shifting between rectangular and square shapes by replacing the extensions.

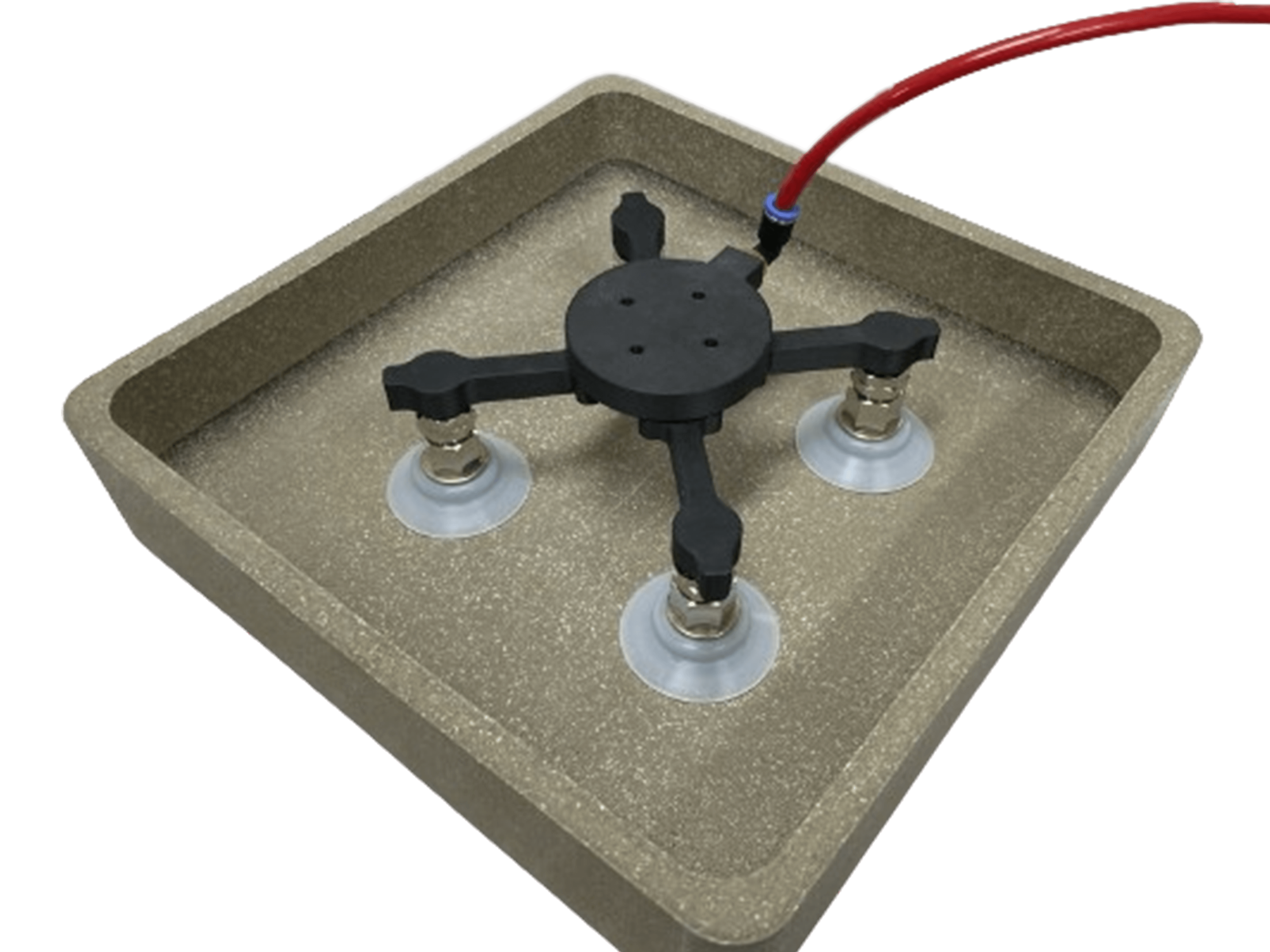

- Based on the shape of the container, the gripper shown in the images is designed in a square type to minimize the shaking of the workpiece during lifting, enhancing stability.
- To Improve gripper stiffness, the extension bars 3D-printed with reinforcement continuous fibers.
- Designed built-in vacuum channels within the gripper for convenient use with connecting one-touch fitting and vacuum tubes.
